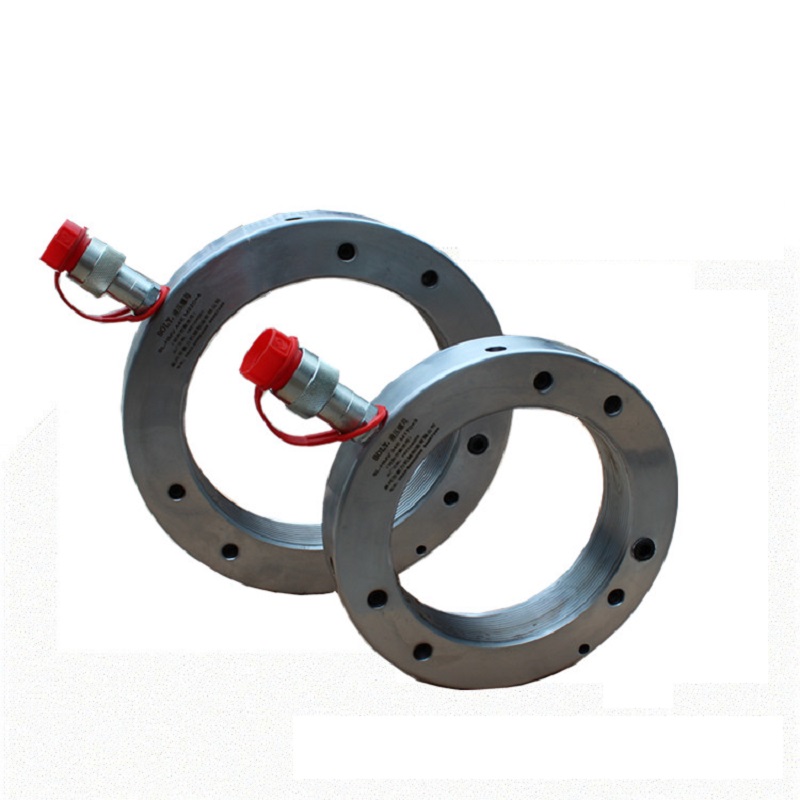

軸承安裝方法
液壓螺母將軸承推進錐形軸的安裝位置;液壓螺母旋到軸上推動退卸套;液壓螺母將軸承推進緊定套上;液壓螺母和止動螺母配合使用推動退卸套
軸承拆卸方法

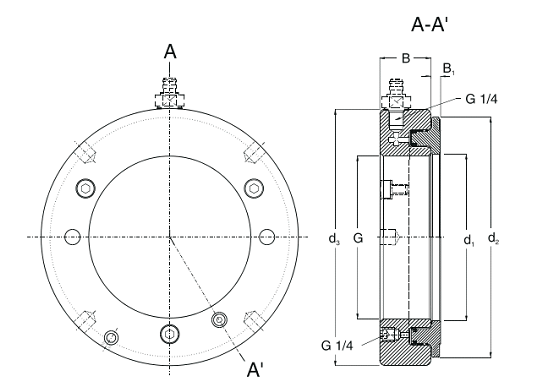

技術參數:
型號 | 螺紋 | 壓環內徑 d1(mm) |
壓環外徑 d2(mm) |
外徑 d3(mm) |
B (mm) |
B1 (mm) |
允許活塞位移 (mm) |
活塞面積 (mm2) |
重量 (Kg) |
SL-HMV 10E | M 50x1.5 | 50.5 | 104 | 114 | 38 | 4 | 5 | 2.900 | 2.70 |
SL-HMV 11E | M 55x2 | 55.5 | 109 | 120 | 38 | 4 | 5 | 3.150 | 2.75 |
SL-HMV 12E | M 60x2 | 60.5 | 115 | 125 | 38 | 5 | 5 | 3.300 | 2.80 |
SL-HMV 13E | M 65x2 | 65.5 | 121 | 130 | 38 | 5 | 5 | 3.600 | 3.00 |
SL-HMV 14E | M 70x2 | 70.5 | 127 | 135 | 38 | 5 | 5 | 3.800 | 3.20 |
SL-HMV 15E | M 75x2 | 75.5 | 132 | 140 | 38 | 5 | 5 | 4.000 | 3.40 |
SL-HMV 16E | M 80x2 | 80.5 | 137 | 146 | 38 | 5 | 5 | 4.200 | 3.70 |
SL-HMV 17E | M 85x2 | 85.5 | 142 | 150 | 38 | 5 | 5 | 4.400 | 3.75 |
SL-HMV 18E | M 90x2 | 90.5 | 147 | 156 | 38 | 5 | 5 | 4.700 | 4.00 |
SL-HMV 19E | M 95x2 | 95.5 | 153 | 162 | 38 | 5 | 5 | 4.900 | 4.30 |
SL-HMV 20E | M 100x2 | 100.5 | 158 | 166 | 38 | 6 | 5 | 5.100 | 4.40 |
SL-HMV 21E | M 105x2 | 105.5 | 163 | 172 | 38 | 6 | 5 | 5.300 | 4.65 |
SL-HMV 22E | M 110x2 | 110.5 | 169 | 178 | 38 | 6 | 5 | 5.600 | 4.95 |
SL-HMV 23E | M 115x2 | 115.5 | 174 | 182 | 38 | 6 | 5 | 5.800 | 5.00 |
SL-HMV 24E | M 120x2 | 120.5 | 179 | 188 | 38 | 6 | 5 | 6.000 | 5.25 |
SL-HMV 25E | M 125x2 | 125.5 | 184 | 192 | 38 | 6 | 5 | 6.200 | 5.35 |
SL-HMV 26E | M 130x2 | 130.5 | 190 | 198 | 38 | 6 | 5 | 6.400 | 5.65 |
SL-HMV 27E | M 135x2 | 135.5 | 195 | 204 | 38 | 6 | 5 | 6.600 | 5.90 |
SL-HMV 28E | M 140x2 | 140.5 | 200 | 208 | 38 | 7 | 5 | 6.800 | 6.00 |
SL-HMV 29E | M 145x2 | 145.5 | 206 | 214 | 39 | 7 | 5 | 7.300 | 6.50 |
SL-HMV 30E | M 150x2 | 150.5 | 211 | 220 | 39 | 7 | 5 | 7.500 | 6.60 |
SL-HMV 31E | M 155x3 | 155.5 | 218 | 226 | 40 | 7 | 5 | 8.100 | 6.95 |
SL-HMV 32E | M 160x3 | 160.5 | 224 | 232 | 40 | 7 | 6 | 8.600 | 7.60 |
SL-HMV 33E | M 165x3 | 165.5 | 229 | 238 | 41 | 7 | 6 | 8.900 | 7.90 |
SL-HMV 34E | M 170x3 | 170.5 | 235 | 244 | 41 | 7 | 6 | 9.400 | 8.40 |
SL-HMV 36E | M 180x3 | 180.5 | 247 | 256 | 42 | 7 | 6 | 10.300 | 9.15 |
SL-HMV 38E | M 190x3 | 191 | 259 | 270 | 43 | 8 | 7 | 11.500 | 10.5 |
SL-HMV 40E | M 200x3 | 201 | 271 | 282 | 43 | 8 | 8 | 12.500 | 11.5 |
SL-HMV 41E | Tr 205x4 | 207 | 276 | 288 | 44 | 8 | 8 | 12.800 | 12.0 |
SL-HMV 42E | Tr 210x4 | 212 | 282 | 294 | 44 | 8 | 9 | 13.400 | 12.5 |
SL-HMV 43E | Tr 215x4 | 217 | 287 | 300 | 44 | 8 | 9 | 13.700 | 13.0 |
SL-HMV 44E | Tr 220x4 | 222 | 293 | 306 | 45 | 8 | 9 | 14.400 | 13.5 |
SL-HMV 45E | Tr 225x4 | 227 | 300 | 312 | 45 | 8 | 9 | 15.200 | 14.5 |
SL-HMV 46E | Tr 230x4 | 232 | 305 | 318 | 46 | 8 | 9 | 15.500 | 14.5 |
SL-HMV 47E | Tr 235x4 | 237 | 311 | 326 | 46 | 8 | 10 | 16.200 | 16.0 |
SL-HMV 48E | Tr 240x4 | 242 | 316 | 330 | 46 | 9 | 10 | 16.500 | 16.0 |
SL-HMV 50E | Tr 250x4 | 252 | 329 | 342 | 46 | 9 | 10 | 17.600 | 17.5 |
SL-HMV 52E | Tr 260x4 | 262 | 341 | 356 | 47 | 9 | 11 | 18.800 | 19.0 |
SL-HMV 54E | Tr 270x4 | 272 | 352 | 368 | 48 | 9 | 12 | 19.800 | 20.5 |
SL-HMV 56E | Tr 280x4 | 282 | 363 | 380 | 49 | 9 | 12 | 21.100 | 22.0 |
SL-HMV 58E | Tr 290x4 | 292 | 375 | 390 | 49 | 9 | 13 | 22.400 | 22.5 |
SL-HMV 60E | Tr 300x4 | 302 | 386 | 404 | 51 | 10 | 14 | 23.600 | 25.5 |
SL-HMV 62E | Tr 310x5 | 312 | 397 | 416 | 52 | 10 | 14 | 24.900 | 27.0 |
SL-HMV 64E | Tr 320x5 | 322 | 409 | 428 | 53 | 10 | 14 | 26.300 | 29.5 |
SL-HMV 66E | Tr 330x5 | 332 | 419 | 438 | 53 | 10 | 14 | 27.000 | 30.0 |
SL-HMV 68E | Tr 340x5 | 342 | 430 | 450 | 54 | 10 | 14 | 28.400 | 31.5 |
SL-HMV 69E | Tr 345x5 | 347 | 436 | 456 | 54 | 10 | 14 | 29.400 | 32.5 |
SL-HMV 70E | Tr 350x5 | 352 | 442 | 464 | 56 | 10 | 14 | 29.900 | 35.0 |
SL-HMV 72E | Tr 360x5 | 362 | 455 | 472 | 56 | 10 | 15 | 31.300 | 35.5 |
SL-HMV 73E | Tr 365x5 | 367 | 460 | 482 | 57 | 11 | 15 | 31.700 | 38.5 |
SL-HMV 74E | Tr 370x5 | 372 | 466 | 486 | 57 | 11 | 16 | 32.800 | 39.0 |
SL-HMV 76E | Tr 380x5 | 382 | 476 | 498 | 58 | 11 | 16 | 33.500 | 40.5 |
SL-HMV 77E | Tr 385x5 | 387 | 483 | 504 | 58 | 11 | 16 | 34.700 | 41.0 |
SL-HMV 80E | Tr 400x5 | 402 | 499 | 522 | 60 | 11 | 17 | 36.700 | 45.5 |
SL-HMV 82E | Tr 410x5 | 412 | 510 | 534 | 61 | 11 | 17 | 38.300 | 48.0 |
SL-HMV 84E | Tr 420x5 | 422 | 522 | 546 | 61 | 11 | 17 | 40.000 | 50.0 |
SL-HMV 86E | Tr 430x5 | 432 | 532 | 556 | 62 | 11 | 17 | 40.800 | 52.5 |
SL-HMV 88E | Tr 440x5 | 442 | 543 | 566 | 62 | 12 | 17 | 42.500 | 54.0 |
SL-HMV 90E | Tr 450x5 | 452 | 554 | 580 | 64 | 12 | 17 | 44.100 | 57.5 |
SL-HMV 92E | Tr 460x5 | 462 | 565 | 590 | 64 | 12 | 17 | 45.100 | 60.0 |
SL-HMV 94E | Tr 470x5 | 472 | 576 | 602 | 65 | 12 | 18 | 46.900 | 62.0 |
SL-HMV 96E | Tr 480x5 | 482 | 587 | 612 | 65 | 12 | 19 | 48.600 | 63.0 |
SL-HMV 98E | Tr 490x5 | 492 | 597 | 624 | 66 | 12 | 19 | 49.500 | 66.0 |
SL-HMV 100E | Tr 500x5 | 502 | 609 | 636 | 67 | 12 | 19 | 51.500 | 70.0 |
SL-HMV 102E | Tr 510x6 | 512 | 624 | 648 | 68 | 12 | 20 | 53.300 | 74.0 |
SL-HMV 104E | Tr 520x6 | 522 | 634 | 658 | 68 | 13 | 20 | 54.300 | 75.0 |
SL-HMV 106E | Tr 530x6 | 532 | 645 | 670 | 69 | 13 | 21 | 56.200 | 79.0 |
SL-HMV 108E | Tr 540x6 | 542 | 657 | 682 | 69 | 13 | 21 | 58.200 | 81.0 |
SL-HMV 110E | Tr 550x6 | 552 | 667 | 693 | 70 | 13 | 21 | 59.200 | 84.0 |
SL-HMV 112E | Tr 560x6 | 562 | 678 | 704 | 71 | 13 | 22 | 61.200 | 88.0 |
SL-HMV 114E | Tr 570x6 | 572 | 689 | 716 | 72 | 13 | 23 | 63.200 | 91.0 |
SL-HMV 116E | Tr 580x6 | 582 | 699 | 726 | 72 | 13 | 23 | 64.200 | 94.0 |
SL-HMV 120E | Tr 600x6 | 602 | 721 | 748 | 73 | 13 | 23 | 67.300 | 100 |
SL-HMV 126E | Tr 630x6 | 632 | 754 | 782 | 74 | 14 | 23 | 72.900 | 110 |
SL-HMV 130E | Tr 650x6 | 652 | 775 | 804 | 75 | 14 | 23 | 76.200 | 115 |
SL-HMV 134E | Tr 670x6 | 672 | 796 | 826 | 76 | 14 | 24 | 79.500 | 120 |
SL-HMV 138E | Tr 690x6 | 692 | 819 | 848 | 77 | 14 | 25 | 84.200 | 127 |
SL-HMV 142E | Tr 710x7 | 712 | 840 | 870 | 78 | 15 | 25 | 87.700 | 135 |
SL-HMV 150E | Tr 750x7 | 752 | 883 | 912 | 79 | 15 | 25 | 95.200 | 146 |
SL-HMV 160E | Tr 800x7 | 802 | 936 | 965 | 80 | 16 | 25 | 103.900 | 161 |
SL-HMV 170E | Tr 850x7 | 852 | 990 | 1020 | 83 | 16 | 26 | 114.600 | 181 |
SL-HMV 180E | Tr 900x7 | 902 | 1043 | 1075 | 86 | 17 | 30 | 124.100 | 205 |
SL-HMV 190E | Tr 950x8 | 952 | 1097 | 1126 | 86 | 17 | 30 | 135.700 | 218 |
SL-HMV 200E | Tr 1000x8 | 1002 | 1150 | 1180 | 88 | 17 | 34 | 145.800 | 239 |
